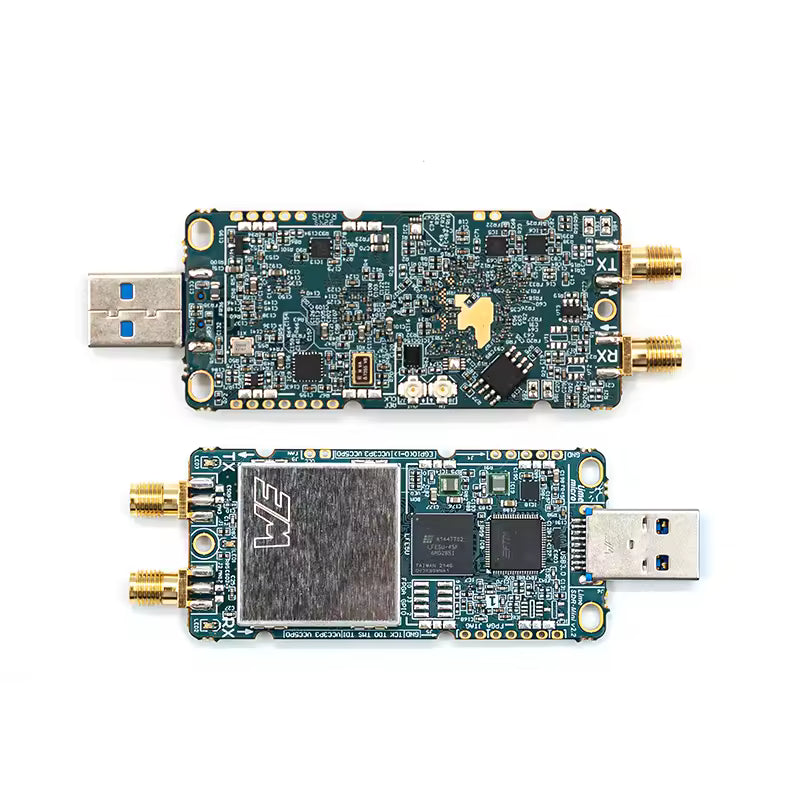

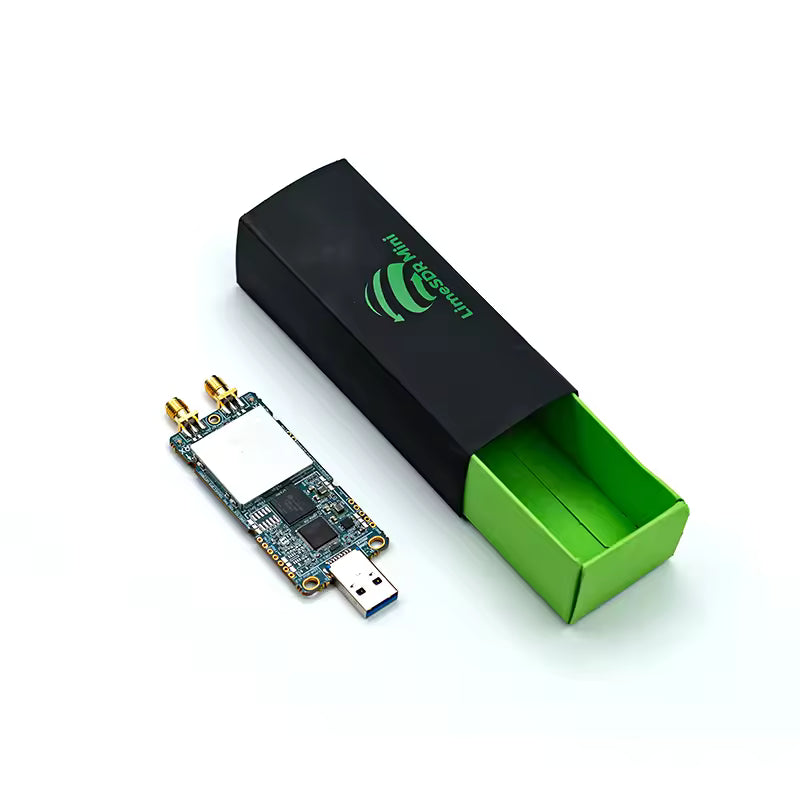

LimeSDR Mini 2.0 SDR | 10 MHz–3.5 GHz
LimeSDR Mini 2.0 SDR | 10 MHz–3.5 GHz
LimeSDR Mini 2.0 SDR | 10 MHz–3.5 GHz
LimeSDR Mini 2.0 SDR | 10 MHz–3.5 GHz
LimeSDR Mini 2.0 SDR | 10 MHz–3.5 GHz
LimeSDR Mini 2.0 SDR | 10 MHz–3.5 GHz
LimeSDR Mini 2.0 SDR | 10 MHz–3.5 GHz

LimeSDR Mini 2.0 SDR | 10 MHz–3.5 GHz

$699.00 USD

  • Explore the spectrum with LimeSDR Mini 2.0. This compact, open-source SDR combines full-duplex transmit and receive capability with a programmable FPGA, giving makers and developers a flexible platform for RF experiments and wireless prototyping.

Quantity:
PayPal Visa American Express Discover Diners Club Union Pay Visa Electron Cartes Bancaires

  • Free Worldwide Shipping on Orders Over $69 | 30-Day Returns

Fraud Prevention: Your Payment is Safe & Secure.

Introduction

Experiment across the spectrum with a compact, open-source SDR. LimeSDR Mini 2.0 brings full-duplex transmit and receive capability and a programmable FPGA to wireless learning, RF prototyping, and custom signal projects.

Hardware Specification

RF Transceiver: LMS7002M

Frequency Range: 10 MHz–3.5 GHz

Channels: 1 TX and 1 RX, full duplex

Bandwidth: Up to 30.72 MHz

Sampling: 12-bit, up to 30.72 MSPS

FPGA: Lattice ECP5

Interface: USB 3.0

Software Specification

Driver and Tools: Lime Suite

Development: Compatible integrations for SoapySDR and GNU Radio

Customization: Open-source resources for SDR applications and FPGA development
