PE42540 SP4T RF Switch Board | 4-Port Signal Routing up to 8 GHz
PE42540 SP4T RF Switch Board | 4-Port Signal Routing up to 8 GHz
PE42540 SP4T RF Switch Board | 4-Port Signal Routing up to 8 GHz
PE42540 SP4T RF Switch Board | 4-Port Signal Routing up to 8 GHz
PE42540 SP4T RF Switch Board | 4-Port Signal Routing up to 8 GHz

PE42540 SP4T RF Switch Board | 4-Port Signal Routing up to 8 GHz

$39.00 USD

  • Route one RF signal across four test paths with ease. Built around the PE42540 SP4T switch, this compact board offers electronic path selection for radio projects, RF measurements, and automated test setups.

Quantity:
PayPal Visa American Express Discover Diners Club Union Pay Visa Electron Cartes Bancaires

  • Free Worldwide Shipping on Orders Over $69 | 30-Day Returns

Fraud Prevention: Your Payment is Safe & Secure.

Introduction

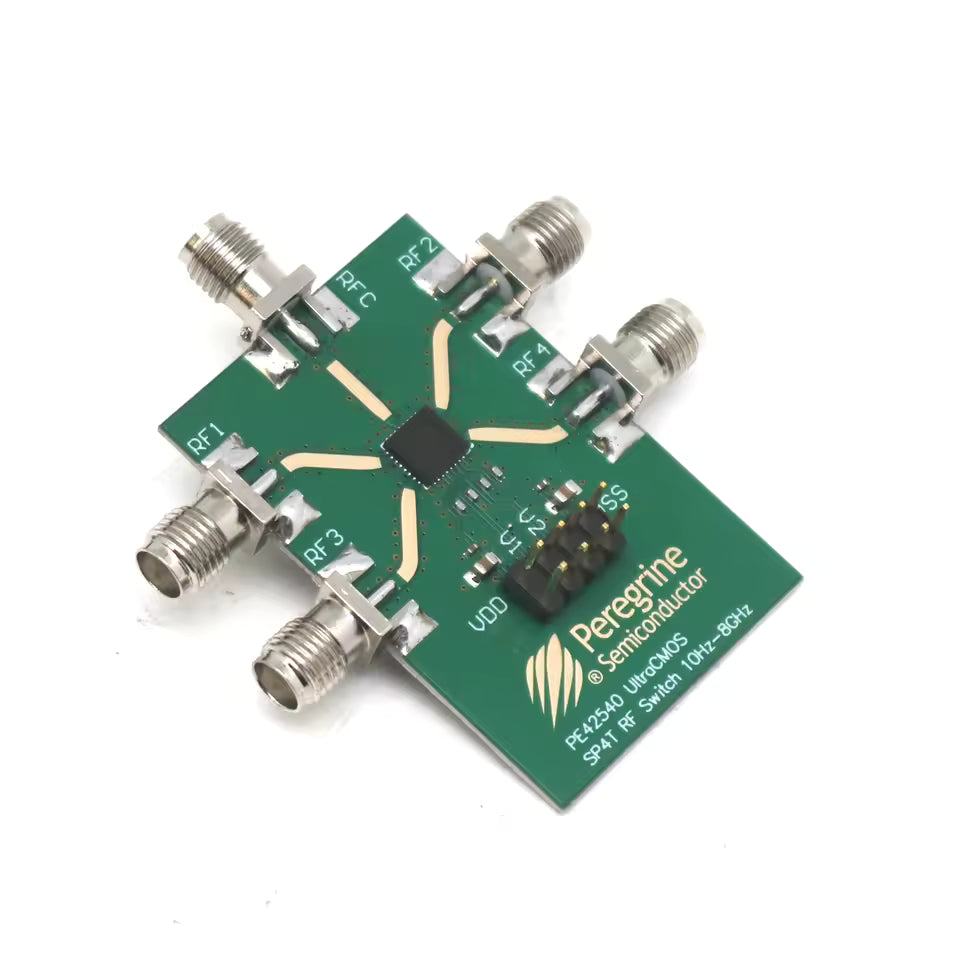

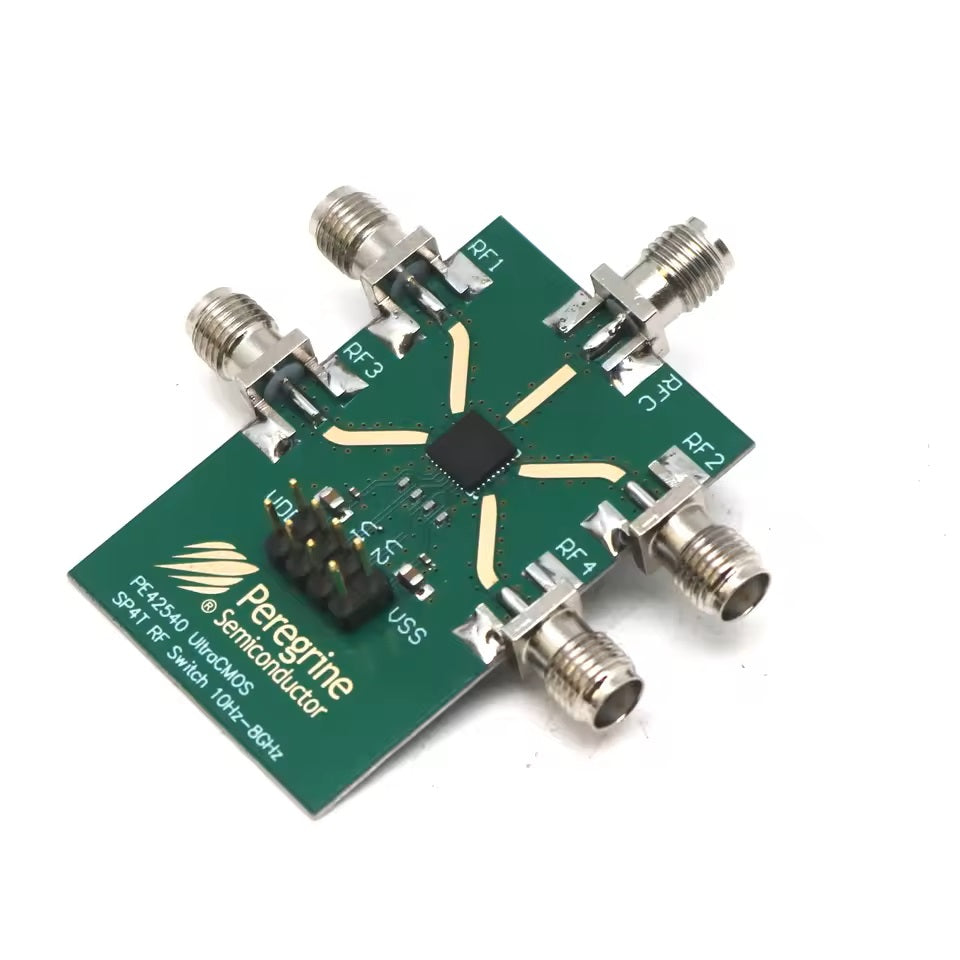

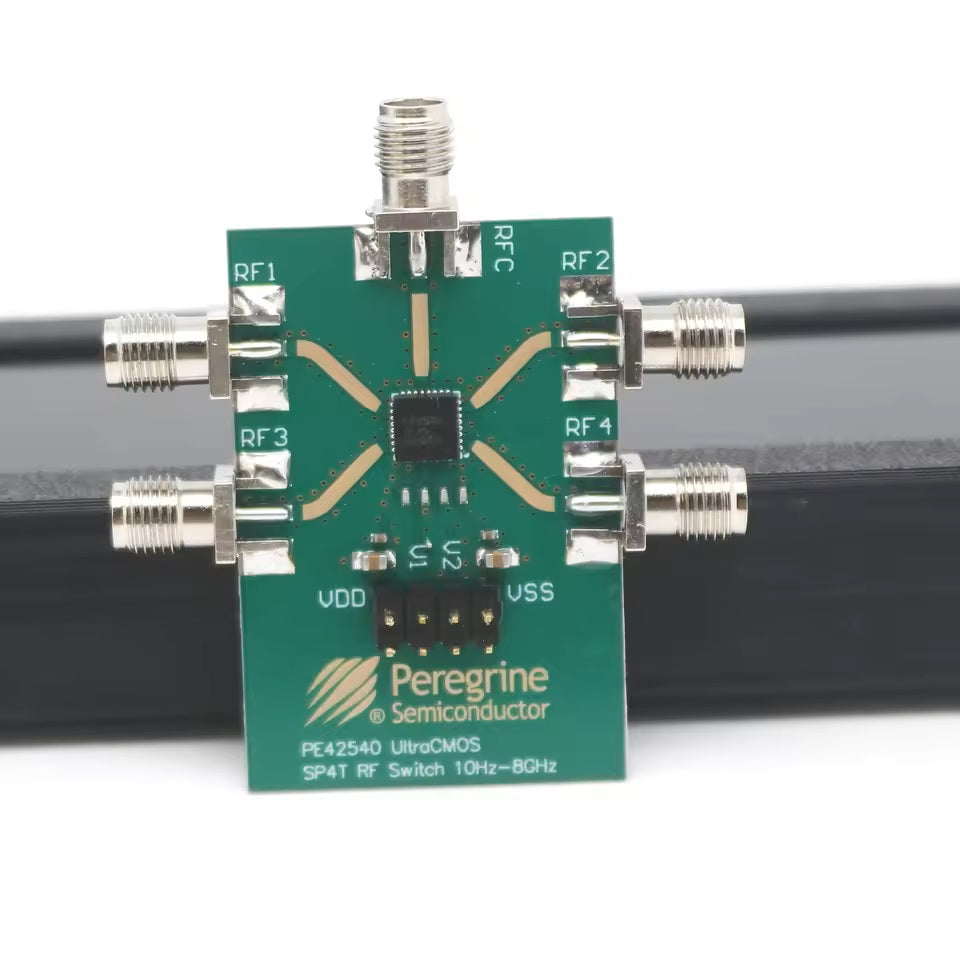

The PE42540 switch board provides one common RF connection and four selectable paths. Its small PCB footprint makes it suitable for integrating signal routing into a bench setup or custom electronics project.

Hardware Specification

  • Switch chip: PE42540, absorptive SP4T

  • RF paths: One common port and four selectable ports

  • Board size: 4.5 × 3 cm

  • Supply: Listed as 3.3 V for this board; the chip’s specified VDD range is 3.0–3.6 V

  • Connections: SMA RF connectors, according to the supplied listing

  • Frequency: Chip specified at 10 Hz–8 GHz; complete board range requires confirmation

Software Specification

  • Control: PE42540 uses a two-pin CMOS control interface to select the RF path

  • Programming: Can be controlled by compatible external logic or a microcontroller; no onboard firmware or software is specified

  • Switching time: Chip specification is 5 µs; performance of the assembled board may vary.

Built for the RF Test Bench

 Integrate the PE42540 SP4T switch board into a measurement setup to select between four RF signal paths.

RF Performance, Measured on the Bench

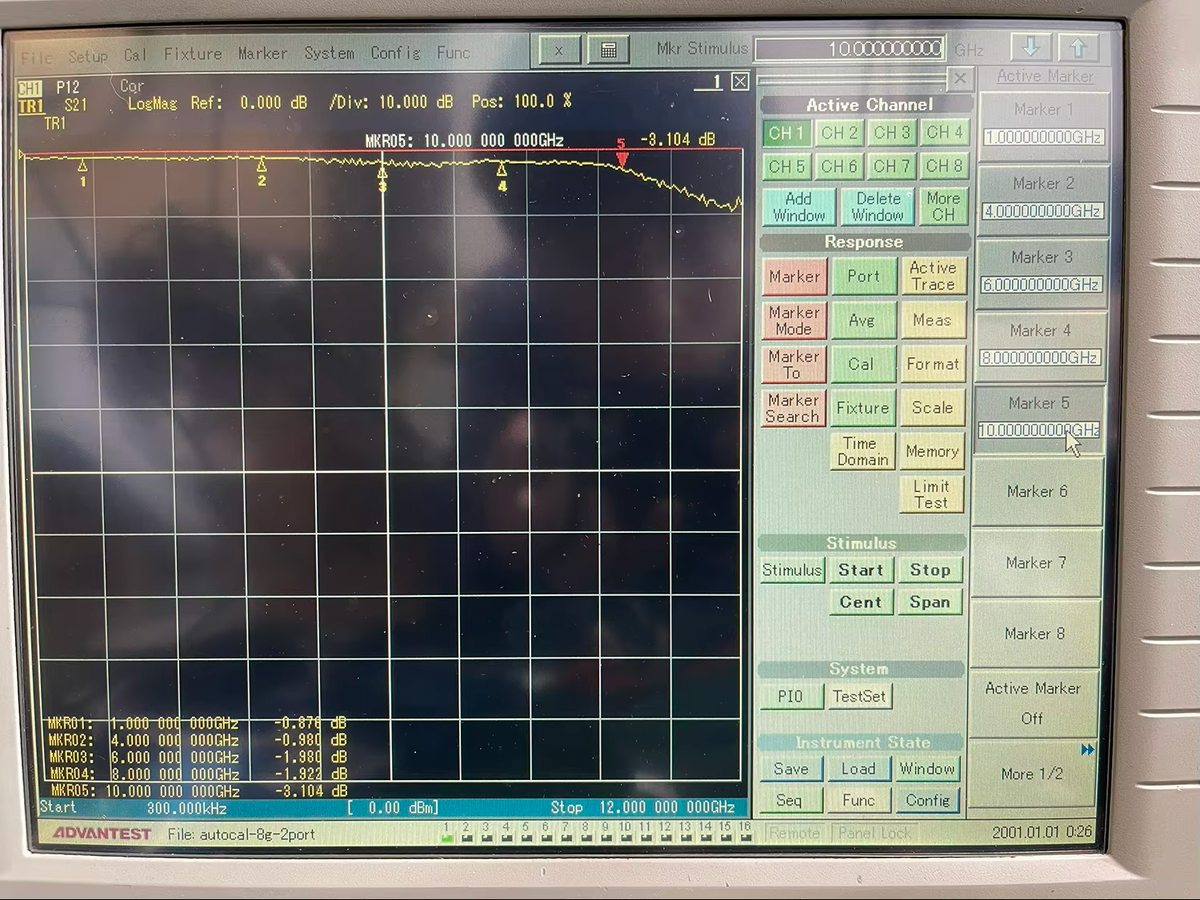

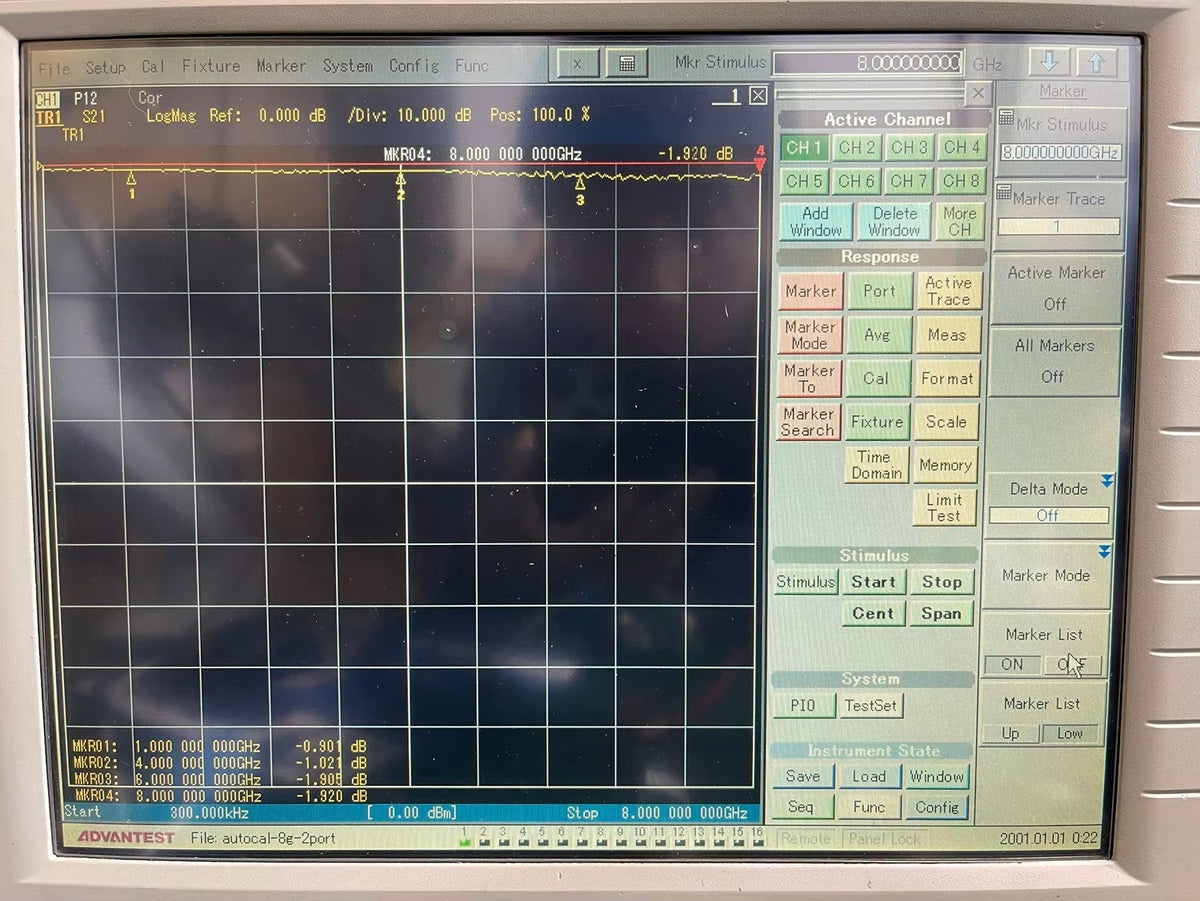

Insertion loss testing of the PE42540 SP4T switch board across frequencies up to 8 GHz.
